SK SERIES WATER RING VACUUM PUMP AND COMPRESSOR

SK SERIES WATER RING VACUUM PUMP AND COMPRESSOR

Product description

SK type water ring vacuum pumps and compressors are used to pump or compress non-corrosive, water-insoluble, solid particles-free gases to create a vacuum or pressure in a closed container to meet pro...

Performance range

Maximum pumping capacity: 1.5-120m³/min Ultimate vacuum: -0.094MPa Power: 3-185kw Power when used as an air compressor: 4-280kw Diameter of inlet and outlet: 70-300mm..

Application Environment

SK-type water ring vacuum pumps and compressors are widely used in machinery, petroleum, chemical, pharmaceutical, food, ceramics, sugar, printing and dyeing, metallurgy, and electronics industries...

Hotline:8613021505120

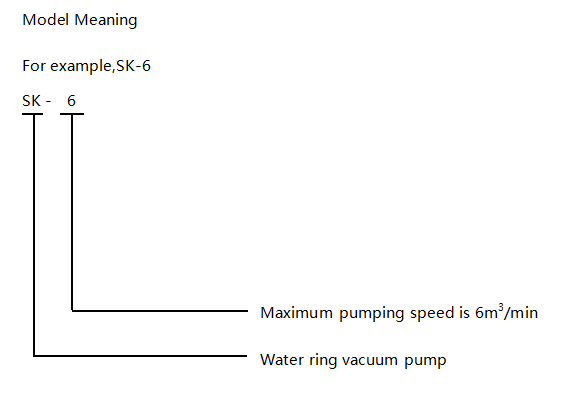

Product description Model meaning Technical Data Sheet Performance curve Structure diagram Installation size Other

SK type water ring vacuum pumps and compressors are used to pump or compress non-corrosive, water-insoluble, solid particles-free gases to create a vacuum or pressure in a closed container to meet process requirements.A small amount of liquid is allowed in the pumped gas. Since the compression of the gas by the pump is performed under isothermal conditions during the working process, it is not easy to cause danger when pumping flammable or explosive gases. Therefore, its application is more extensive.

Vacuum pumps for pumping corrosive gases and other nonaqueous liquids as working fluids can be designed according to user's requirement.

Product Characteristic

SK series products have the characteristics of strong suction capacity under high vacuum.It is an ideal vacuum equipment for paper, chemical, pharmaceutical and other industries, and its technical indicators have reached the international leading level.
